Clipsal Fire Alarm - Photoelectric Interconnectable - FREE DELIVERY

1x Clipsal Fire Alarm - Photoelectric Interconnectable - 755PSMA4 AS 3786 2014

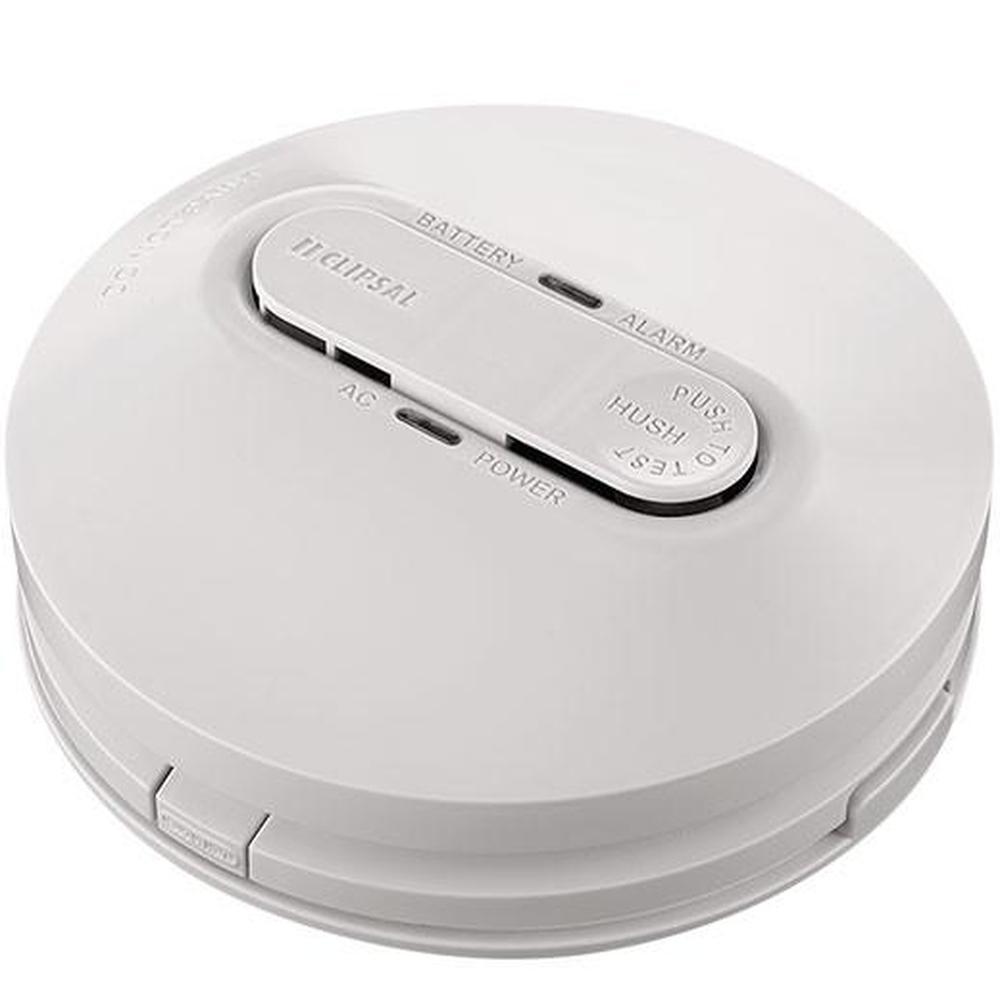

This smoke alarm is a photoelectric smoke alarm that can be used as a single mains powered, battery backed alarm or can be interconnected with other 755 series smoke alarms to give whole home protection. It is designed to be surface mounted on the ceiling.

Certifications and Compliances

• Alarm Condition: Aural signal pattern ISO 8201
• Approvals: SAI Global, RCM, Activfire
• Complies with: AS3786: 2014, AS/NZS 60065, AS/NZS 60950.1
• Model: 755PSMA4

Features:

• Photoelectric technology for detection of smouldering fire types (most common fire types in homes)
• Wired interconnect feature (up to 40 alarms)
• Compatible with optional relay or wirelessw interconnect bases
• Quality optical chamber with stainless steel insect screen
• Easy to use test/hush button
• Easy installation and maintenance with flip-down design
• Robust digital design for optimum performance and resilience
• Certified to AS3786:2014

Specifications:

• Main Power Source: 220-240V a.c. 50Hz
• Secondary Backup Battery: 9V d.c. Carbon Zinc or Alkaline Battery (included)
• Diameter: 14cm
• Operating Current: 35mA
• Sensing Type: Photoelectric. This alarm contains NO radioactive material
• Interconnecting: 40 Alarms over 150 meters
• Terminal Provisions: Active/Neutral/Loop and Interconnect Terminals, each accommodates 2 x 1.5mm2
• Horn Level: 85dB at 3 meters minimum
• Visual Indicators: Green LED for mains power ON
• Red LED for warning and low battery indication

Package Includes:

Clipsal Photoelectric Smoke Alarm

Why Photoelectric Smoke Alarms?

A Photoelectric responds faster to large smoke particles. Smouldering fires produce more large particles, so this type of fire will be more quickly detected by this Photoelectric Alarm.

The way forward

Australia wide has seen an update of smoke alarms rules and legislations to Photoelectric only, which further protect everyone in their home. This Photoelectric Smoke alarm carries the latest standards & certifications.
